At Height Drill Winch DW2

At Height Drill Winch DW2
At Height Drill Winch DW2 At Height Drill Winch DW2 At Height Drill Winch DW2

At Height Drill Winch DW2

$3,799.00

Quantity
Add to cart

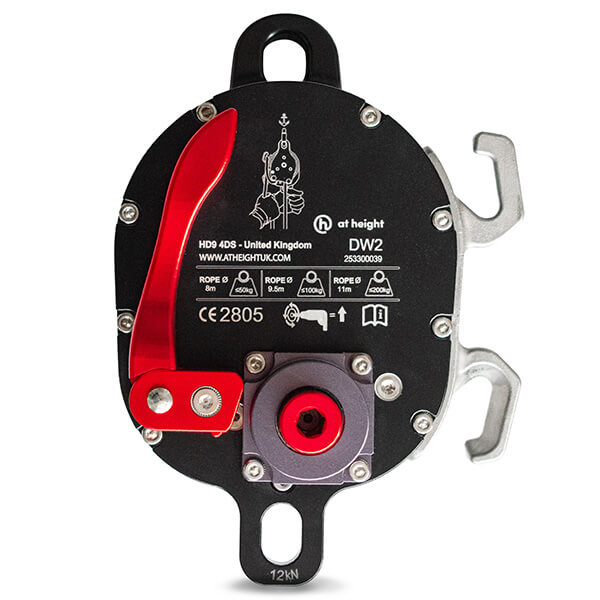

The At Height DW2 Drill Winch is a compact device for lifting and lowering. It handles both people and materials in work-at-height, rescue, rigging, and load-handling. The winch is certified by a Notified Body to the Machinery Directive 2006/42/EC Annex 4. It meets all Essential Health and Safety Requirements of Annex 1. The unit weighs just 2 kg, combining portability with strong performance. It features an 8:1 gear ratio and a becket with a minimum breaking strength of 12 kN. The DW2 works with EN1891A or EN564 ropes from 8 mm to 11 mm. It supports loads from 50 kg (8 mm rope) up to 200 kg (11 mm rope). The winch uses precision-engineered components. Controlled lifting is performed with a high-torque drill (≥100 Nm, non-impact). Smooth lowering is managed with the manual lever. Each unit is individually serial numbered for traceability. Packaging includes a durable hard case and spare hex keys. For best results, use a brushless drill with over 100 Nm of torque and a 5.0 Ah or higher battery.

Minimum Qty

1 Items

Order Ships in

1 Bus Days

Availability

In Stock

Product Code: 103-22001001

All prices include GST
Add to Wishlist
  • High torque drill NOT INCLUDED

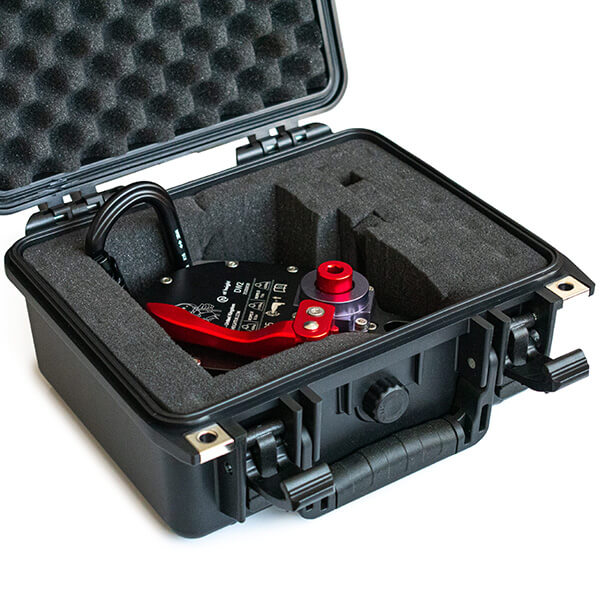

  • Complete with hard-plastic Pelican storage case
  • Includes drill 8mm HEX interface with spares

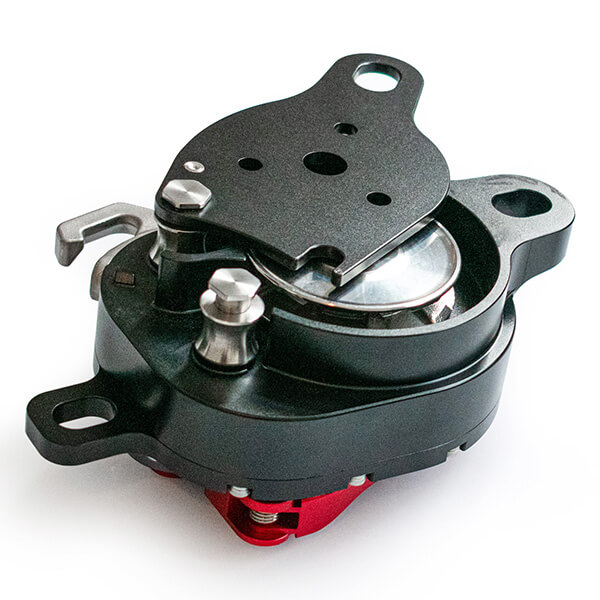

  • Connecting carabiner locked side plate (no mechanical lock) with V-groove wheel to accommodate 8mm - 11mm lines
  • On/Off handle with lowering via the pig-tail cleats
  • Controlled lifting by using a high torque drill counterclockwise (torque 120 - 150 Nm or above capability)
  • Controlled lowering (descent) by using the lever handle with auto stop
  • Can be used attached to a high anchor point - confined space application
  • Or attached to a low anchor point and rigged through a deviation pulley
  • Or used personally by attaching to your harness
  • Compact size: 160 x 120 x 85 mm
  • Gearing 8:1

PLEASE NOTE: Adequate training and judgment are needed to reduce the risks inherent in using this equipment. The purchaser's responsibility is to ensure they are competent in using this product. Treetools strongly advise that you do not use any height safety or arborist equipment without first undertaking appropriate training.

No responsibility will be accepted by Treetools for damage, injury or death resulting from incorrect assembly or modification. If in doubt, contact Treetools at richard@treetools.co.nz. Any person modifying this equipment assumes all risks and full responsibility for all damages or injury which may result from incorrect assembly or modification. Any modifications to this product must be completed by competent professionals only.

Specification
Rope ⌀ 8.0 - 11 mm
Max Load 8mm 50 kg
Max Load 9.5mm 100 kg
Max Load 11mm 200 kg
Weight 1.5 kg
MBS 12 kN
Gearing 8:1
MBS 50 kN
Torque ≥ 100Nm
At Height DW2 DATASHEET pdf download At Height DW2 DATASHEET
At Height Drill Winch USER MANUAL pdf download At Height Drill Winch USER MANUAL
