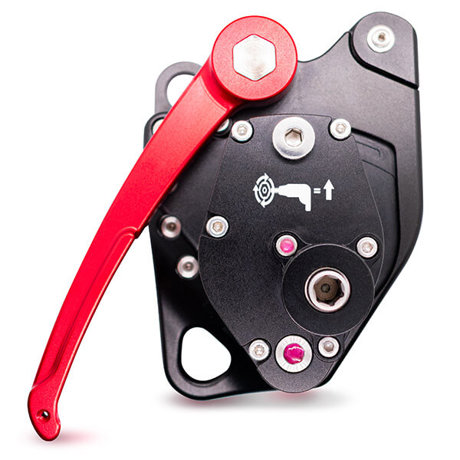

At Height Drill Winch DW3

At Height Drill Winch DW3

At Height Drill Winch DW3

$5,699.00

Quantity
Add to cart

The At Height Drill Winch DW3 lets users safely and efficiently lift or lower loads and personnel, saving time and effort with power-drill operation and smooth lever-controlled descent. Its compact, lightweight 1.5 kg build enhances portability for rapid setup wherever needed—on high anchors for confined-space access, on low anchors via deviation pulleys, or directly on harnesses for personal mobility. The durable aluminium and stainless-steel construction, combined with an 8:1 gear ratio, ensures reliable, low-effort operation. Users benefit from compatibility with 10.5–11 mm EN 1891A ropes, a robust 200 kg load rating, and safety and compliance certification.

Minimum Qty

1 Items

Order Ships in

1 Bus Days

Availability

In Stock

Product Code: 103-22001002

All prices include GST
Add to Wishlist
  • High torque drill NOT INCLUDED
  • Complete with hard-plastic Pelican storage case
  • Includes drill 8mm HEX interface with spares
  • Double lock opening sideplate with V-groove wheel to accommodate 10.5mm - 11mm lines
  • Controlled lifting by using a high torque drill (torque 120 - 150 Nm or above capability)
  • Controlled lowering (descent) by using the lever handle with auto stop
  • Can be used attached to a high anchor point - confined space application
  • Or attached to a low anchor point and rigged through a deviation pulley
  • Or used personally by attaching to your harness
  • Compact size: 160 x 120 x 85 mm
  • Gearing 8:1

PLEASE NOTE: Adequate training and judgment are needed to reduce the risks inherent in using this equipment. The purchaser's responsibility is to ensure they are competent in using this product. Treetools strongly advise that you do not use any height safety or arborist equipment without first undertaking appropriate training.

No responsibility will be accepted by Treetools for damage, injury or death resulting from incorrect assembly or modification. If in doubt, contact Treetools at richard@treetools.co.nz. Any person modifying this equipment assumes all risks and full responsibility for all damages or injury which may result from incorrect assembly or modification. Any modifications to this product must be completed by competent professionals only.

Specification
Rope ⌀ 10.5 - 11 mm
Max Load 200 kg
Weight 1.5 kg
MBS 12 kN
Gearing 8:1
MBS 50 kN
Torque ≥ 100Nm
At Height DW3 DATASHEET pdf download At Height DW3 DATASHEET
At Height Drill Winch USER MANUAL pdf download At Height Drill Winch USER MANUAL
