ONLY FITS THE CURRENT MODEL TREEMOTION PRO and ESSENTIAL
You can replace the hip/leg assembly relatively easily, but a suitably qualified person should undertake the work
Minimal tools required (TORX-20)
Made in the Austria by Teufelberger
The DMM Webbing Stopper Kit makes a better alternative to the original rivets

PLEASE NOTE: Adequate training and judgment are needed to reduce the risks inherent in using this equipment. The purchaser's responsibility is to ensure they are competent in using this product. Treetools strongly advise that you do not use any height safety or arborist equipment without first undertaking appropriate training.

No responsibility will be accepted by Treetools for damage, injury or death resulting from incorrect assembly or modification. If in doubt, contact Treetools at richard@treetools.co.nz. Any person modifying this equipment assumes all risks and full responsibility for all damages or injury which may result from incorrect assembly or modification. This product must be modified by competent professionals only.

Specification
Webbing	25 mm
Connector	TORX 20
Construction	Polyester
Stitches	One End
Rivets	Provided
Left and Right	YES

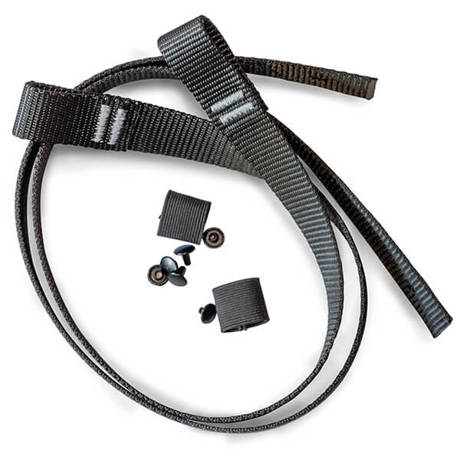

The treeMOTION Pro Hip/Leg is a genuine replacement part from Teufelberger. This spare part should be replaced only by a suitably qualified person. Using a Torx 20, remove the connecting bolt on the black ring and slide out the spacer. Remove the damaged Hip-to-Leg webbing and insert the genuine replacement. Ensure the stitched tab end faces the harness when reconnecting to the black ring. It's best to complete this task one side at a time so you can use the other side as a reference. Thread the end of the webbing through the upper slot of the front hardware. Take care to ensure that the webbing passes from the middle of the harness toward the outer side of the harness. Pass the webbing through the loop of elastic material included in the replacement kit. Ensure that the two adjuster buckle parts are sitting correctly. Pass the webbing through the slot closest to the waist belt. Now, pass the webbing over the centre rib of the buckle and thread it through the slot closest to the webbing keeper that holds the two buckle parts together. You can refer to the opposite side if you lose your way. Check the buckle assembly for the correct function before proceeding. Pass the webbing through the loop of elastic material again. Before proceeding, ensure that all parts are in the correct place, not twisted and that the buckles function correctly. Insert the lower rivet part through the folded-up strap and connect it to the upper rivet part it to the upper rivet part. Place the strap on a solid surface, and use a hammer to drive the rivet into place. Consider using the DMM Webbing Stopper Kit as an alternative to rivets.
