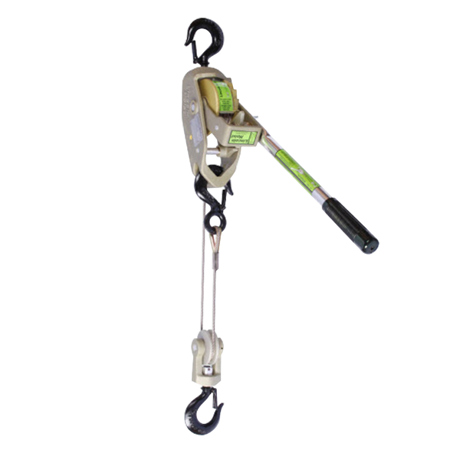

Lincoln Winch 2250-20

  •
  • Lincoln Winch 2250-20

    $365.00

    Quantity

    Made in the USA from caste aluminum to ANSI B30.21 specification for lever operated winches. Individually tested to 125% capacity. The reversible handle is designed to bend when too much pressure is applied to avoid overloading. Quick release lever to allow the cable to be pulled out freely. Maintenance free bearings lubed for life. Open frame construction for easy inspection and cleaning. The hooks are drop forged, heat treated steel made in the USA and the cable is flexible, aircraft grade with a special lube for long life. The drum anchor at the end of the cable is ball swaged, which locks the cable securely to the drum allowing for full extension of the cable. Over 1000kg pulling power on a double line (the Lincoln 2250-20 has an integrated block and hook).

    Minimum Qty

    1 Items

    Order Ships in

    1 Bus Days

    Availability

    In Stock

    Product Code: 215-01002001

    All products include GST
    All products exclude GST
    • Made in the USA
    • Load tested to 125% of rated capacity
    • Handle bends to alert operator overload
    • Interlocking pawl mechanism - no brakes to slip
    • Quick-release allows cable to be pulled out freely when rigging
    • Maintenance free bearings lubed for life
    • Open frame construction for easy inspection and cleaning
    • USA-made 360° drop forged, heat treated steel swivel hooks
    • Hydraulically crimped copper sleeve for uniform hold
    • All cable stored on drum
    • Swaged ball drum anchor terminal locks the cable securely to the drum, while allowing full cable extension
    Specification
    Cable Ø
    5 mm
    Handle Length
    445 mm
    Single Capacity
    510 kg
    Double Capacity
    1020 kg
    Single Lift
    6 m
    Double Lift
    3 m
    Weight 4.3 kg

    Lincoln Winch Lincoln Winch (861 KB)

    Lincoln 2250-20 Lincoln 2250-20 (234 KB)

    Shipping Rates
    Auckland $6.90
    North Island $9.90
    South Island $12.90
    Orders Over $250 FREE

    Free Shipping excludes ladders and overweight product.

    NO INTERNATIONAL SHIPPING Treetools is a 'kiwi only' affair.
    Find out more about Treetools Shipping and Return Policy here.
    All parcels require signature on delivery unless requested otherwise.

    Customers also bought

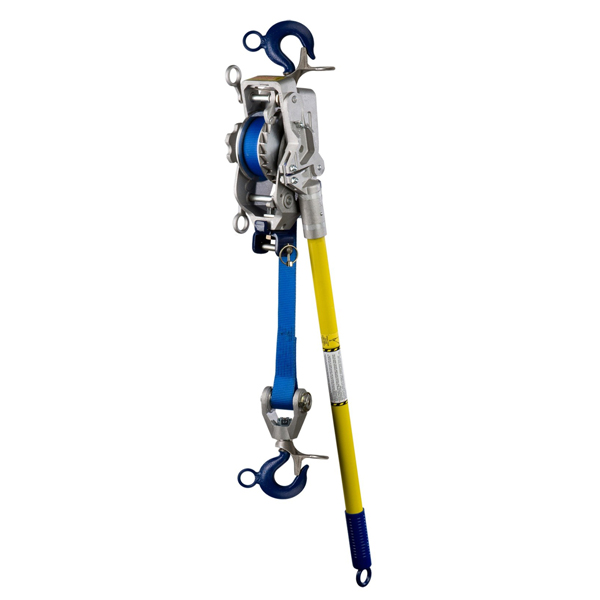

    Lincoln Webstrap 4W12BSALE

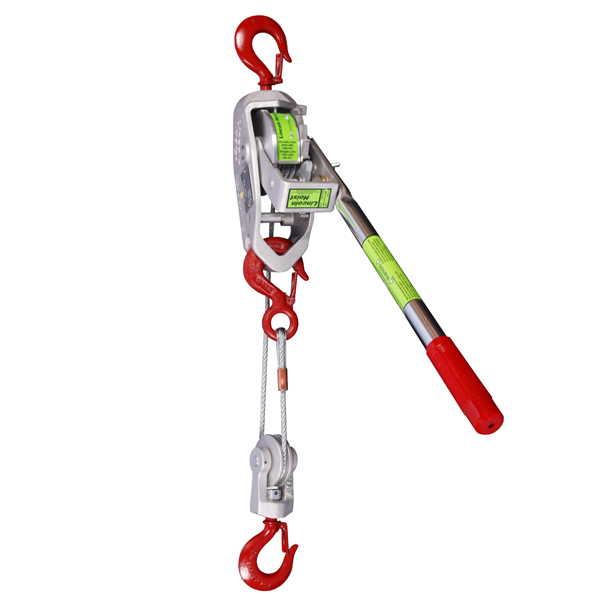

    Lincoln Winch 3000-10SALE

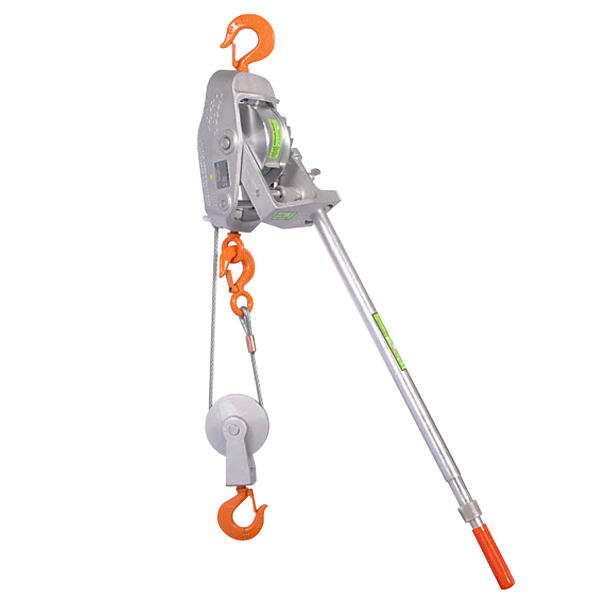

    Lincoln Winch 6000-15SALE
